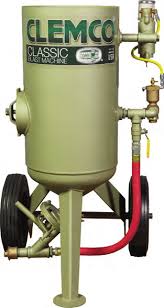

Clemco 01179 3 Cubic Foot 1 1/4" Pipe w/ TLR-300 Remote & Flat Sand Valve Classic Sandblast Pots

High-performance, versatile blast cleaning system removes contamination, corrosion, mill scale, and coatings from most surfaces. Produces a uniform surface texture, and creates a surface profile to increase bonding for coatings.

Features

• Full Flow Stainless Steel Teflon-Sealed Ball Valves With Brass Body
• Semi-Elliptical Head For Larger Storage Of Abrasive
• Urethane-Coated Pop-Up Valve With External Sleeve For Long Wear Life & Fast Pressurization
• Large Inspection Door For Easy Access To Inside
• Heavy-Gauge Construction Pressure Vessel Fabricated For Rugged Field Service
• Built To ASME Standards
• Conical 35 Degree Bottom Ensures Total Use Of Abrasive & Uninterrupted Abrasive Flow
• 45 Degree Abrasive Flow Into Air Stream
• Heavy Duty Piping Assembled Tightly Against Tank Avoids Unnecessary Protrusions
• Flexible Pusher Line Guarantees Air Flow Without Pressure Loss
• Mounted On Two Heavy-Duty Rubber Wheels For Easy Portability

Requirements for Operation
These items are required but not included with this equipment:

• Clean, dry, compressed air of sufficient volume to maintain desired pressure at the nozzle. Refer to Air Consumption Chart in Blast Off 2 booklet (publication stock no. 09294).
• Minimum of 50 psi needed to close the pop-up valve and pressurize the blast machine.
• OSHA-required remote control system that interrupts blasting if operator should lose control of the nozzle when blast machine is pressurized.
• NIOSH-approved, type CE, supplied-air respirator.
• Grade D breathing-air supply as defined by Compressed Gas Association Commodity Specification: G-7.1 (Refer to www.cganet.com).
• Abrasive blast media specifically marketed for abrasive blasting and appropriate for your application.
• Appropriate blast suit, work boots, hearing and eye protection.

Description of Operation
The operator controls blasting from a remote control handle at the nozzle. Pressing the handle starts blasting; releasing it stops blasting. The blast machine contains abrasive and meters it into the compressed air stream.

Advantages

• Yard portable, industrial-quality blast machines manufactured to ASME code.
• 1-1/4-inch piping allows up to 50 percent more air flow when compared with 1-inch piping.
• Industrial-quality valves, piping and fittings designed to maximize air flow and minimize energy required to operate the system.
• FSV abrasive metering valve maintains smooth, consistent, adjustable media flow. Model 2443 Lo-Pot has a LPV abrasive metering valve.

The FSV, an original Clemco design, is the triedand-true work horse of the industry. It is among the most imitated Clemco components. It is standard on machines from 2-cubic feet to 20-cubic feet capacity

Approvals and Certifications
Clemco's quality management system is ISO 9001-2008 certified.

Blast machine pressure vessel built to American Society of Mechanical Engineers (ASME) specifications for 150-psi working pressure. Vessel is hydrostatically tested and National Board-certified.

Remote control system complies with OSHA regulation 1910.244 (b).
